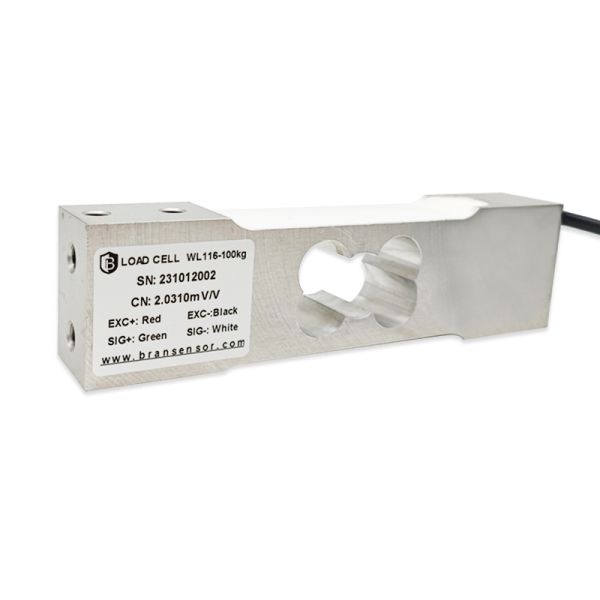

Precision You Can Count On: WL-116 Single Point Load Cell
5kg to 200kg Capacity | C3/C4 Accuracy | Built for Industry
Product Description:
Introducing the WL-116—a high-performance single point load cell designed to deliver uncompromising accuracy in the most demanding industrial environments. Whether you're weighing ingredients in a food plant or monitoring packages on a conveyor, this single point load cell ensures every gram counts.
Rugged yet precise, this single point load cell handles capacities from 5kg to 200kg with ease. Its C3/C4 accuracy rating means the WL-116 single point load cell meets international standards for precision weighing, giving you confidence in every measurement.
What sets this single point load cell apart is its remarkable output consistency. Multiple units of this single point load cell can be combined in parallel to create large-scale weighing platforms, all while maintaining perfect synchronization. That's the kind of reliability only a premium single point load cell can offer.
The WL-116 single point load cell is built to integrate seamlessly into automated systems—from smart warehouses to canning lines. With customizable cable options and flexible mounting, this single point load cell adapts to your setup, not the other way around.
When you choose the WL-116 single point load cell, you're investing in a component that combines cutting-edge technology with industrial-grade toughness. Upgrade your weighing systems today with a single point load cell that sets the benchmark for performance.
Specifications:
| Capacity |
5kg/10kg/ 20kg/ 30kg/ 50kg/ 100kg/200kg |
| Rated output |
2.0±10%mV/V
|
| Accuracy class |
C3/C4 |
| Combined error |
±0.01%F.S. |
| Zero balance |
±0.2%mV/V |
| Non-linearity |
±0.017%F.S. |
| Hysteresis |
±0.017%F.S. |
| Repeatability |
±0.01%F.S. |
| Creep (30min) |
±0.017%F.S. |
| Temperature effect on sensitivity |
±0.017%F.S./10℃ |
| Temperature effect on zero |
±0.02%F.S./10℃ |
| Input resistance |
420±20Ω |
| Output resistance |
350±10Ω |
| Insulation resistance |
≥5000MΩ/100VDC |
| Recommended excitation |
5-15VDC |
| Compensated temp. range |
-10~40℃ |
| Operation temp. range |
-10~50℃ |
| Safe overload |
150%F.S. |
| Ultimate overload |
300%F.S. |
| IP class |
IP68 (Customizable) |
| Cable size |
Φ5.2×4000mm (Customizable) |
| Material |
Aluminum alloy |
| Max.platform size |
600mm×500mm |
Dimension(MM):
Load Direction:
Wiring:
Load Cell Packaging and Shipping
To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:
1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.
Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
